R8845U1003/U Honeywell Univ.Switching Relay W. Int. Transformer
$167.51
$83.75
Description :
The R8845U Universal Switching Relay with 24 V transformer provides intermediate switching of line-and low-voltage devices from a line- or low-voltage controller and is typically applied in Hydronic heating systems.
- Republic #
- 49301
- Catalog #
- R8845U1003/U
- Stock Status
- Discontinued
- Availability
- 1 available!
The R8845U Universal Switching Relay with 24 V transformer provides intermediate switching of line-and low-voltage devices from a line- or low-voltage controller and is typically applied in Hydronic heating systems.
Features
- Replaceable transformer fuse.
- Two troubleshooting LED.
- Long-life DC relay drive control technology.
- One model may replace many Honeywell models:R182A,B,C,J; R482A,B,C,J; R845; R882A,B,C,J and RA832.
- Relay for use with external 24 Vac or 24 Vdc supply, with line-voltage control, or with internal 24 V transformer supply.
- Push-to-test button.
- Low-voltage contact rating for PowerPile® applications.
- Replaceable socketed relays.
- One model replaces many competitor models.
| Switching | Two SPST, plus PowerPile® rated low voltage SPST relay. (If normally closed contacts are needed, use RA889A). |
| Contact Ratings (AFL) | 7.4A AFL, 44.4A @ 120 Vac on each set of line-voltage contacts |
| Transformer | Secondary Rating-24 Vac, 12 VA max., 9 VA available for external load. Secondary protected by replaceable 1A automotive fuse. |
| Operating Humidity Range (% RH) | 0 to 90% RH, non-condensing |
| Coil Ratings Current | 0.4A |
| Item Type | Product |
| Approvals, Underwriters Laboratories Inc. | Listed: File No. E4436, Guide No. XAPX |
| Approvals, Canadian Underwriters Laboratories Inc. | Listed: Guide No. XAPX7. |
| Electrical Ratings, Contacts | Maximum connected load is 2000 VA |
| Dimensions (in.) | 6 1/4 in. high x 4 7/16 in. wide x 3 1/2 in. deep |
| Comments | Thermostat Compatibility-- Honeywell electromechanical and electronic 2- or 3-wire; Thermostat Heat Anticipator Setting-- 0.12A |
| Frequency | 60 Hz |
| Temperature Ratings (C) | Ambient: -29 C to +49 C |
| Application | Enclosed Universal switching relay with internal transformer for 24 volt 2 or 3 wire thermostat control of line voltage devices. Two line voltage SPST relays and one low voltage SPST relay with PowerPile® rating. |
| Electrical Connections | Control Circuit- 2 or 3-wire |
| Includes | Integral transformer, enclosure |
| Dimensions (mm) | 159 mm high x 118 mm wide x 89 mm deep |
| Input Voltage | 120V |
| Coil Ratings Voltage | 24 Vac |
| Temperature Ratings (F) | Ambient: -20 F to +120 F |
Documents

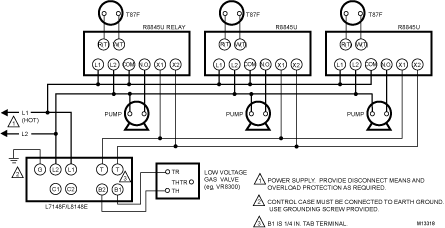

Wiring-Universal Switching Relay Wiring-Wiring Dirgrams for Hydronic Systems Wiring-R8845U Thermostat Connections Installation Materials-Universal Switching Relay Wiring-Universal Switching Relay Product Data and Specifications-Product Data for R8845U Universal Switching Relay Dimension-R8845U dimensions Sales/Promotional Materials-Hydronic Heating Solutions3 Reviews For The Product
